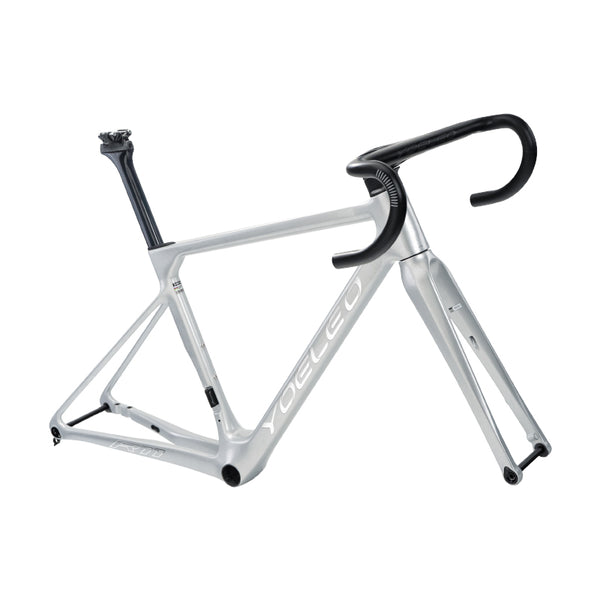

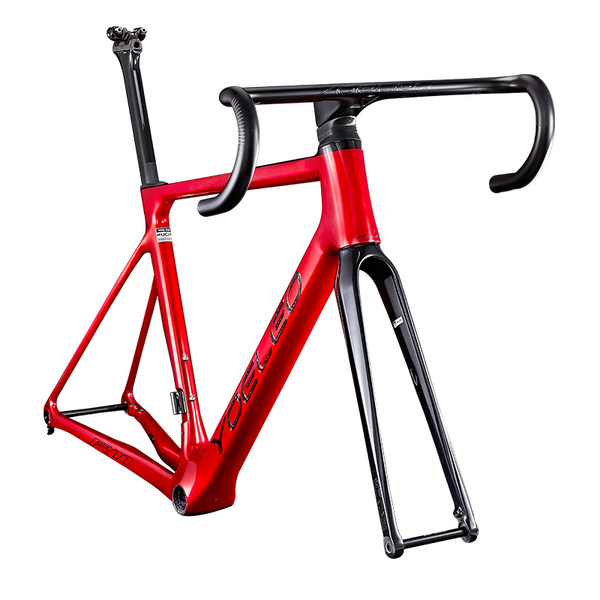

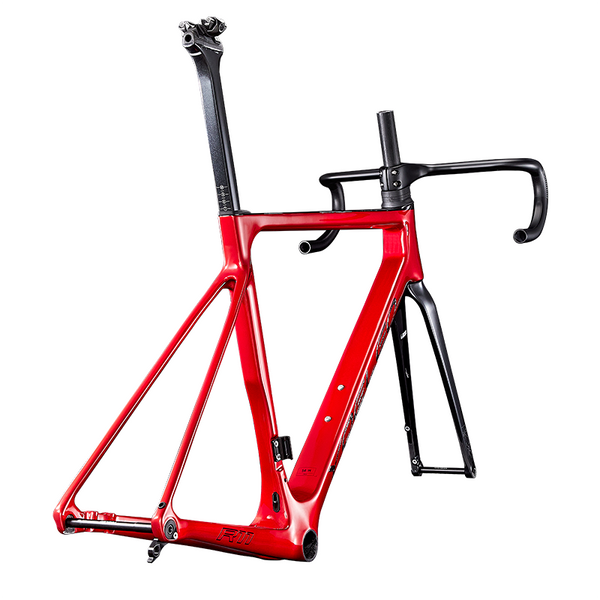

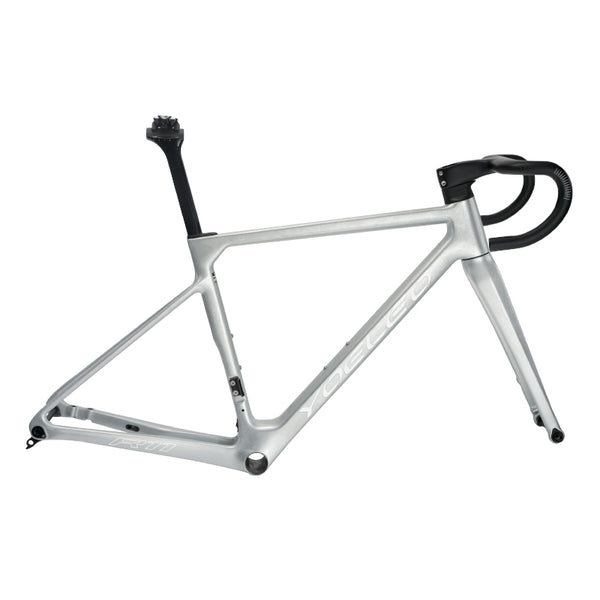

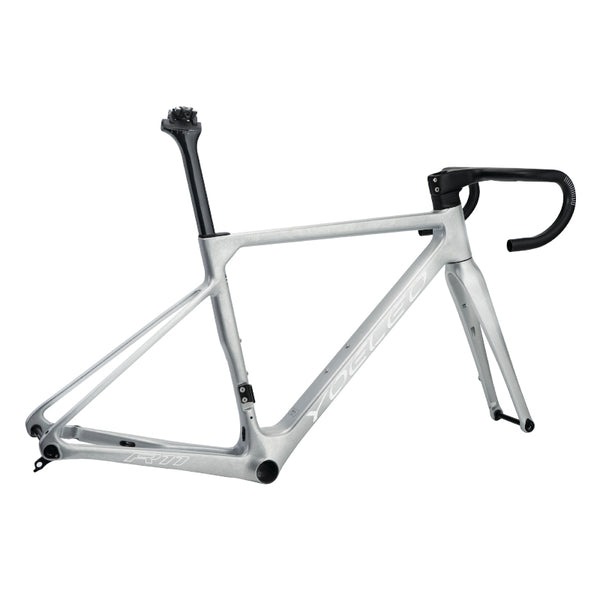

R11 Super Light Disc Brake Bike Rammekit
R11 Super Light Disc Brake Bike Rammekit er superlet med en vægt på kun *890 gram for rammen (*størrelse 49 cm). Denne stive og responsive ramme betyder, at din energi ved hvert tråd overføres direkte til jorden, hvilket er præcis, hvor du ønsker det. Med hurtig håndtering til nedkørslerne er det den perfekte partner. Det eneste, der er tilbage, er at se, hvilken bakke du vil bestige næste gang?

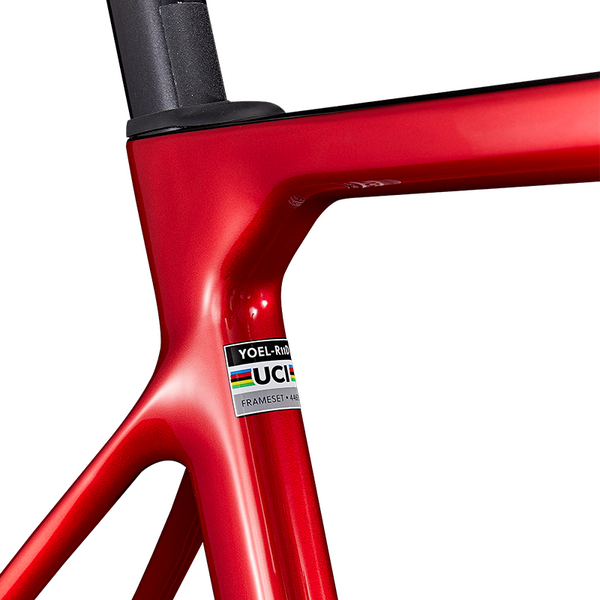

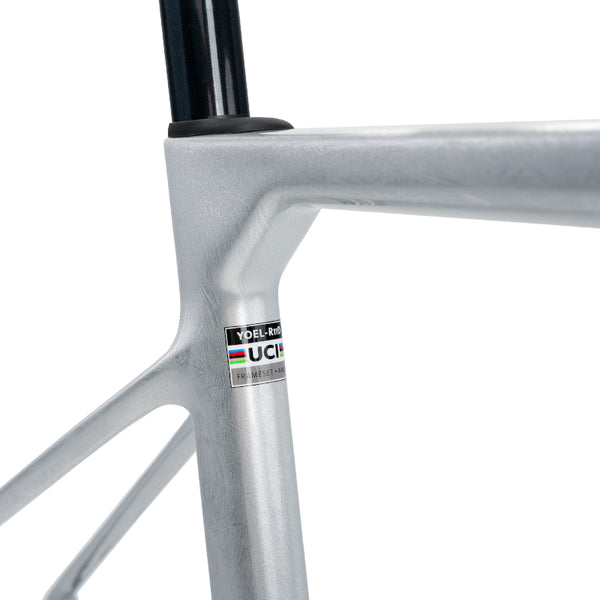

Certificering: UCI-godkendt
Rammekit: R11 ramme+gaffel+styr+sadelpind+sadelpind
Størrelser: 49cm,52cm,54cm,56cm,59cm
Styrstørrelse: 380mm,400mm,420mm,440mm,440mm
Størrelse af frempind: 90mm/100mm/110mm/120mm
Materiale: High Modulus Toray T1000 Carbon Fiber

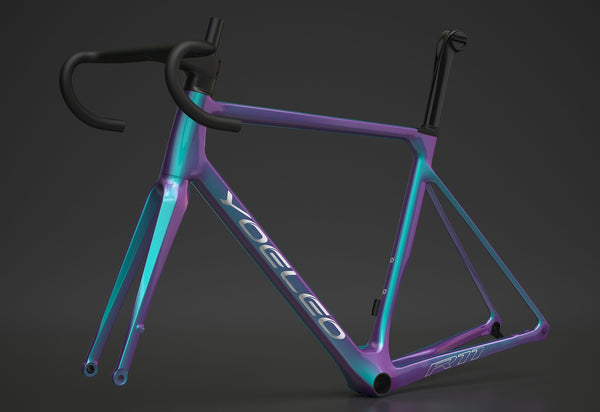

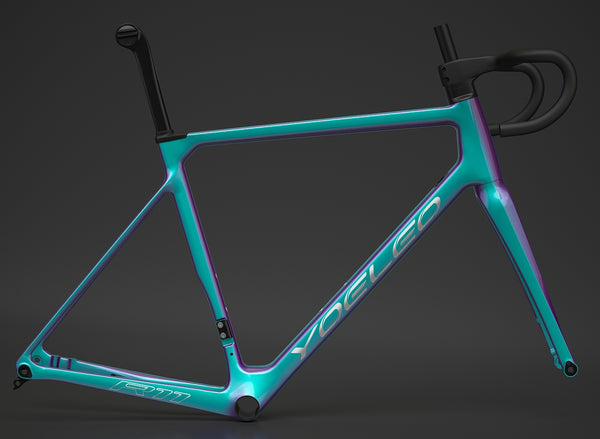

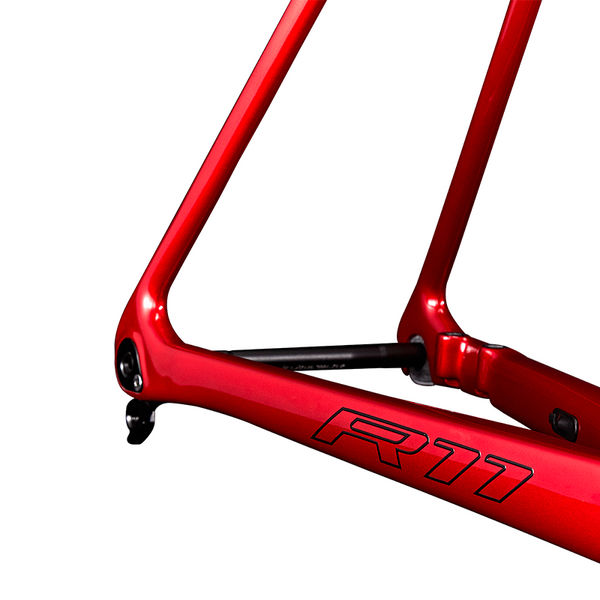

Farve: Arctic Ice / Ruby Red / Chameleon / Custom Painting
Gruppesæt kompatible: Machine og Di2 kompatibel
BB: BB86
Bagaksel: 12*142 Thru Axle
Gear drop: Udskiftelig
Gaffelstilk: 1-1/2" Straight

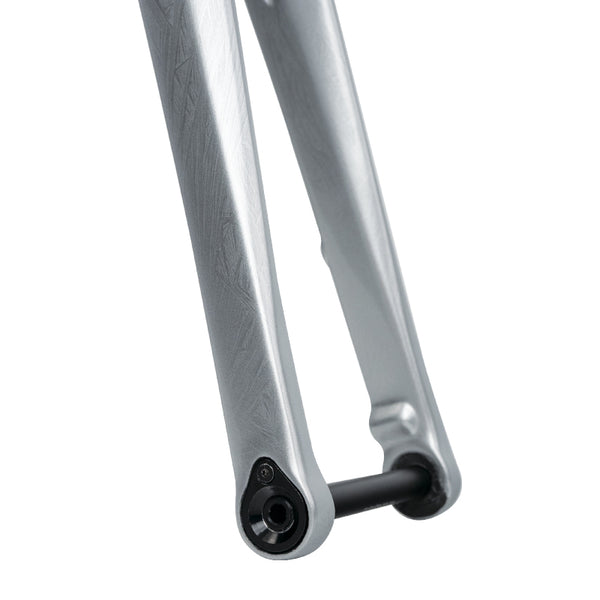

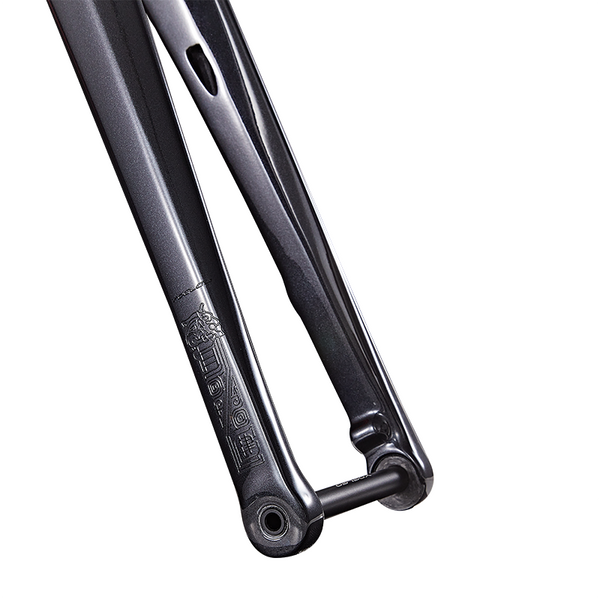

Gaffel: Aero skivebremseforgaffel, flad montering, 12*100 Thru Axle
Forskydning af gaflen: 45
Bremse: Flad monteret skivebremse
Maksimal dækbredde: 32 mm
Kabel: Internt kabel
Rammevægt:

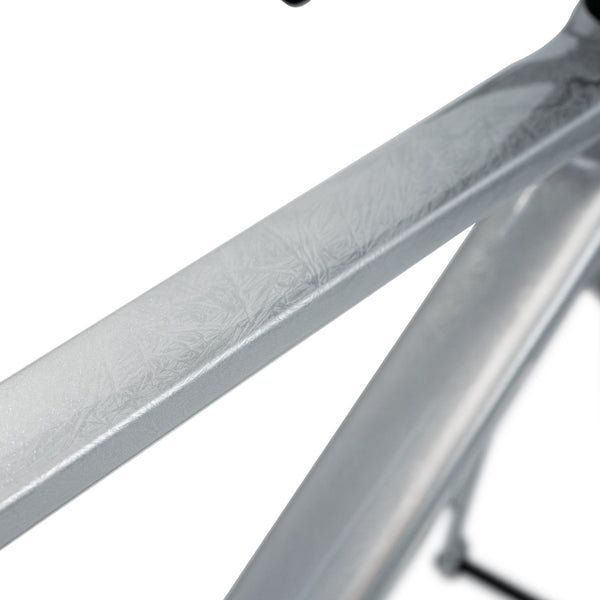

Arctic Ice 980g (49cm) +/-50g
Ruby Red 1010g (49cm) +/-50g
Raw 890g (49cm) +/-50g
Gaffel vægt: 455+/-15g
Sadelpind Vægt: 204g+/-30g
Tilbehør: 3mm: 1PC, 5mm: 1PC, 10mm: 2PCS,
Headset Bearing Cap 10mm: 1PC
Foraksel: 1 stk., bagaksel: 1 stk. Di2 Cover: 2PCS
Max Ryttervægt: 105KG
Garanti: 3 år
Geometri:
| Størrelser |
L Reach |
M Stack |
A Top Tube Length |
B Head Tube Length |
C Seat Tube Angle |
D Head Tube Angle |
E BB Drop |
F Chain Stay |
G Wheel Base |
H BB to Front Wheel |
I Fork Length |
J Fork Rake |
K Seat Tube Length |
| 49CM | 373 | 514 | 520 | 110 | 74° | 72.5° | 69 | 410 | 965 | 565 | 370 | 45 | 455 |
| 52CM | 384 | 523.5 | 535 | 120 | 74° | 72.5° | 69 | 410 | 975 | 579.5 | 370 | 45 | 475 |
| 54cm | 385 | 541 | 545 | 136 | 73.5° | 73° | 69 | 410 | 975 | 580.2 | 370 | 45 | 495 |
| 56CM | 394.5 | 557 | 560 | 155 | 73.5° | 73° | 69 | 410 | 990 | 594.9 | 370 | 45 | 515 |
| 59CM | 398 | 582 | 575 | 175 | 73° | 73.5° | 69 | 410 | 995 | 600 | 370 | 45 | 535 |
Sizing & Fit:
Diagrammerne nedenfor viser vores anbefalede størrelser baseret på højde, men der er nogle andre faktorer, såsom arm- og benlængde, der bestemmer en god pasform.
Derfor vil du se nogle overlapninger i vores anbefalinger.
| Størrelser | XS 49CM |
S 52CM |
M 54CM |
L 56CM |
XL 59CM |
| Rytterhøjde | 165-173CM | 170-178CM | 175-183CM | 180-188CM | 185-193CM |
SAFETY EQUALS QUALITY
We have strict quality control process to ensure the excellent frameset quality.
1.Pedaling Fatigue Test : Load 1100N , 100000 Cycles
2.Vertical Fatigue Test: Load 1200N , 50000 Cycles
3.Horizontal Fatigue Test: Load 600N , 100000 Cycles
4.Vibration Fatigue Test: load ST:20KG,BB:40kg,HT:10kg , 30000 Cycles
5.Impact Test (Falling Mass): Falling height 212mm, farmar weight: 22.5 KG.
6.Rigid Test (Falling Frame): Load ST:30KG, BB:50kg, HT:10kg, 2 Cycles
WORRY FREE RIDE AT ANY CIRCUMSTANCES
We tested our H9 with 100,000 Cycle fatigue test, and the result must come with no damage, to ensure the longevity of the product.
72cm Drop impact test with both drop loaded by weight, replicate heavy sprinting, no damage.
We have very strict quality control for all YOELEO products, because safety is always our number one priority.
Fully Internal Cable Routing
Internal cable routing results in external clean lines and improved aerodynamics with the cables completely hidden from view within our fully internal H9v2 integrated handlebar. The internal cable routing system is not only adding to the aesthetic qualities of the frame, but also makes cleaning the bike a simpler process.
Super Light
The R11 is super lightweight at just *850grms for the frame and 390grms for the fork (*size 49cm). This stiff and responsive frame means that with every pedal stroke your energy is transferred directly on to the ground, which is exactly where you want it. With fast handling for the descent’s, it makes the perfect partner. The only thing left to do is to see which hill you want to climb next?

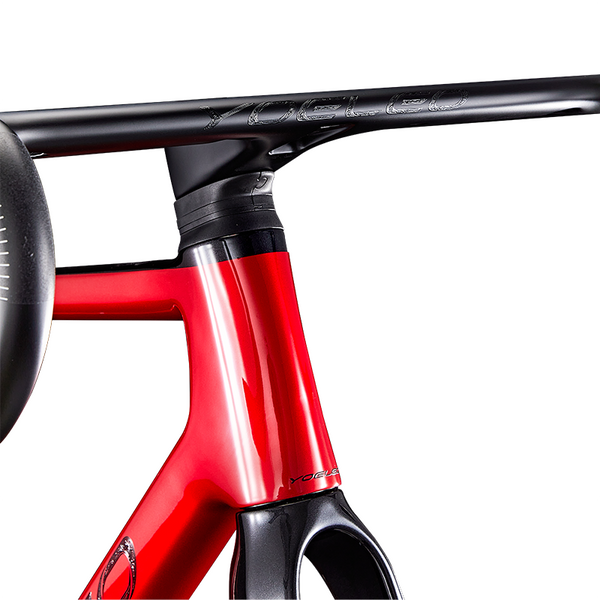

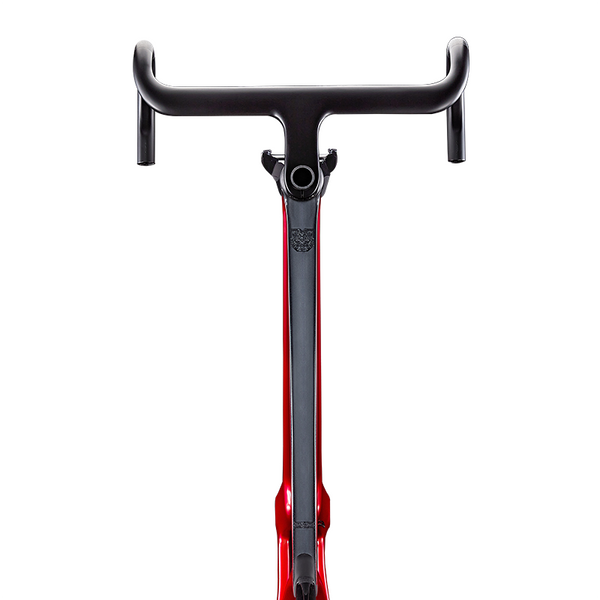

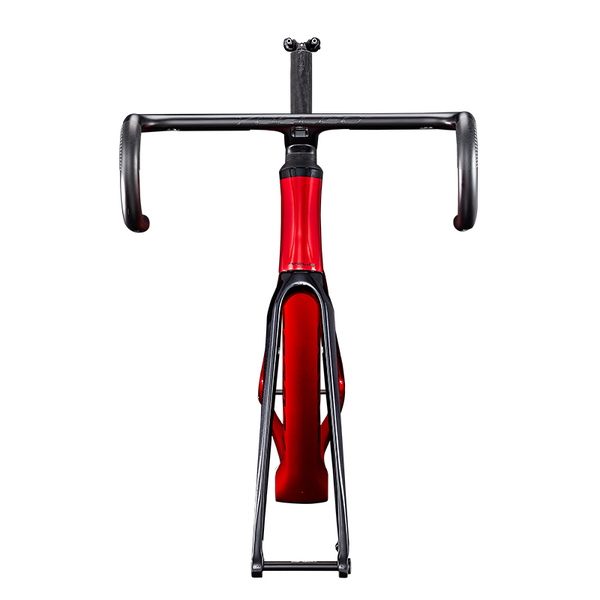

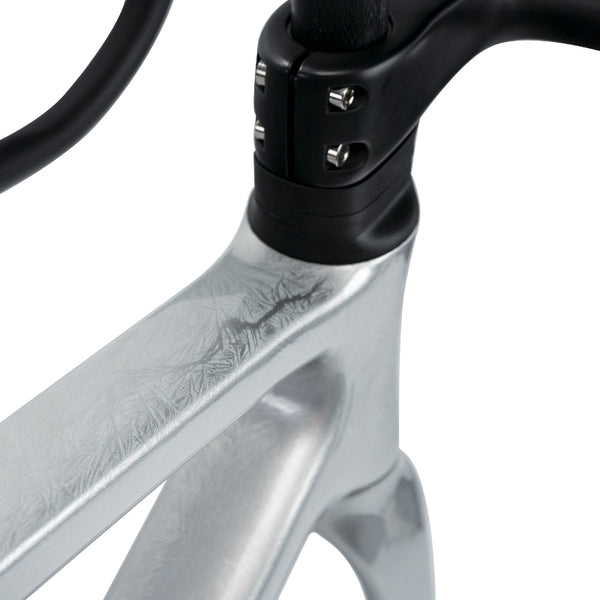

INTEGRATED AEROCOCKPIT
The integrated cockpit H9 (V2) enhances great aerodynamic performance to the R11. With the newest EPS+LATEX moulding process, it too results in low weight, high stiffness, clean aesthetics, smoother internal cable routing and comes with mounts to fit most popular devices.
EXTRA COMPLIANCE FOR BETTER CONTROL

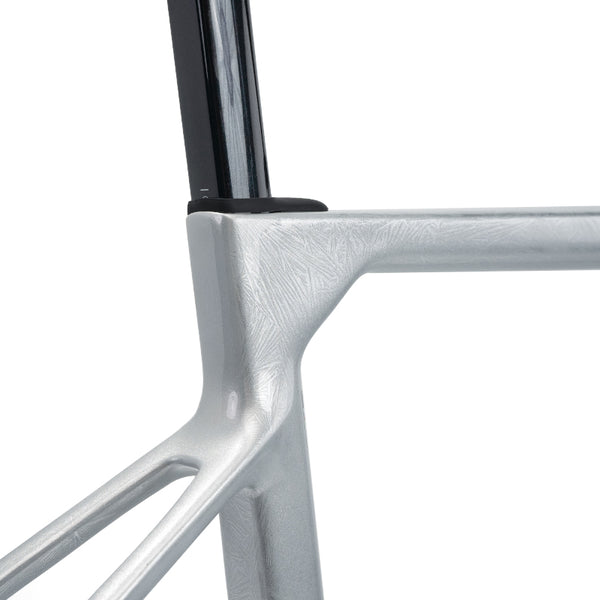

We purposely choose D-Shaped seatpost to give the rider a little bit of compliance on the rough road surface, combined with a bigger tire to act as its main suspension. R11 allows the rider to ignore small obstacles and focus on bike control.
Fit Max 32C Tyres
The latest research shows that wider tyres with lower pressures produce lower rolling resistance while improving grip. Riders can now choose up to a 32C tyre which is ideal for the demanding uneven road surfaces we encounter as riders and has the added benefit of inspiring greater confidence at speed knowing you have more control in the palm of your hand.
EPS+LATEX PRODUCTION TECH
Moulded by one piece monobloc with EPS+LATEX tech makes the handlebar much stiffer and smoother internally, yet easier for cable routing.
EPS+LATEX PRODUCTION TECH
As previously mentioned the R11 is moulded by new manufacturing process called EPS+Latex Tech. Unlike traditional methods like nylon bladders, latex is very flexible and can stretch, so the inside of the frame can be moulded more consistently. This new tech makes R11 incredibly smooth internally eliminating fold lines and creases for a more uniformed internal wall smoothness resulting in a stronger frame. It also simplifies the cable routing process and with this new tech, the frameset weight remains lower due to the extra resin overflow rate is higher and spreads more evenly during the moulding process.
