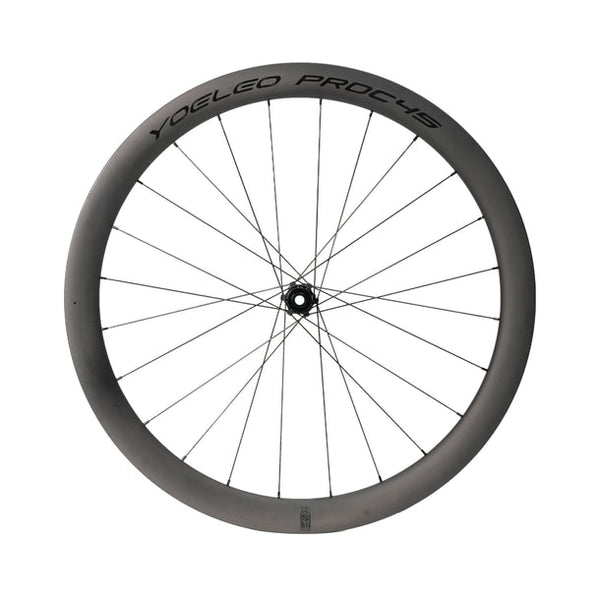

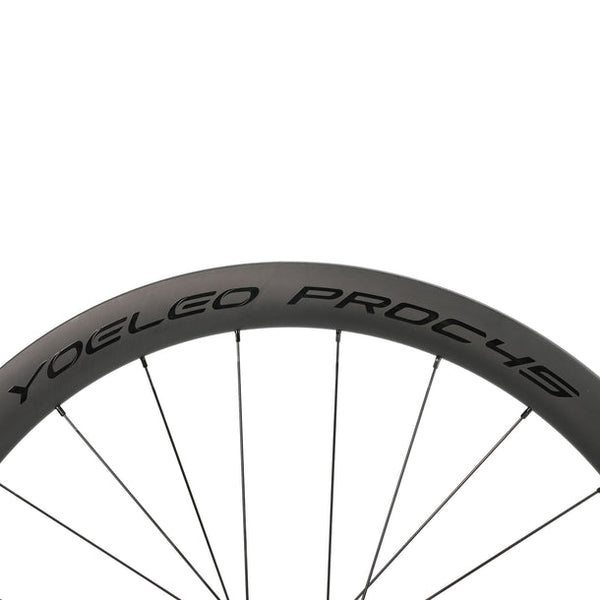

C45 NxT SL2 Gravel
Yoeleo C45 NxT SL2-hjulsættet kombinerer lav vægt (1380 g) med avanceret SAT-teknologi, der øger styrken med 35 %, samt 3,65 mm forstærkede fælgkanter for maksimal holdbarhed. Med en aerodynamisk 45 mm profil, 27 mm indvendig bredde og et højpræcisions nav med hurtig indgrebsratchet leverer dette hjulsæt optimal kraftoverførsel, stabilitet og punkteringsresistens. En high-performance løsning!
|
PRO C45 DB Pro NxT SL2 Gravel |
|
|
Anvendelse |
Gravel |
|
Bremse |
Skivebremser |
|
Følg Højde / Profile |
45mm |
|
Vægt |
1380g ±5% |
|

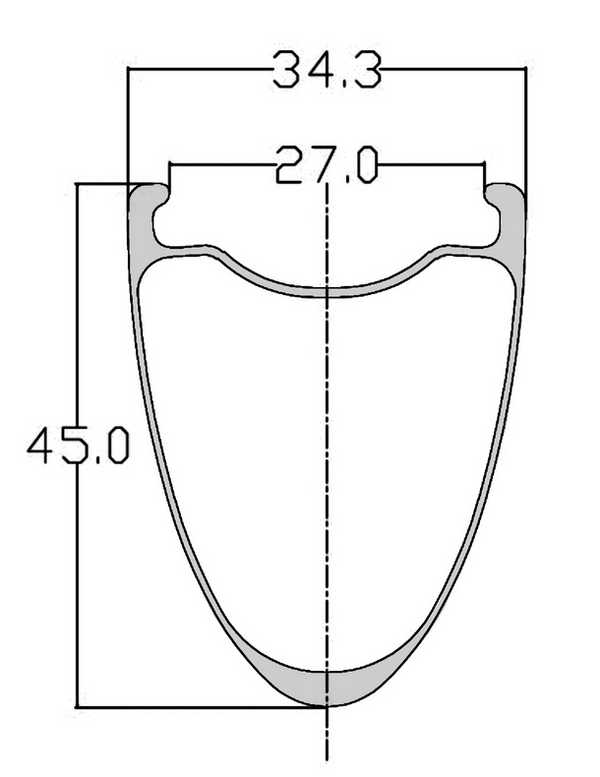

Ekstern fælgbredde |
34,3mm |
|
Intern fælgbredde |
27mm |
|
Materiale |
HI-MOD T800 Carbon Fiber |
|
Eger |
Black Pillar WING 20 Aero Spokes |
|

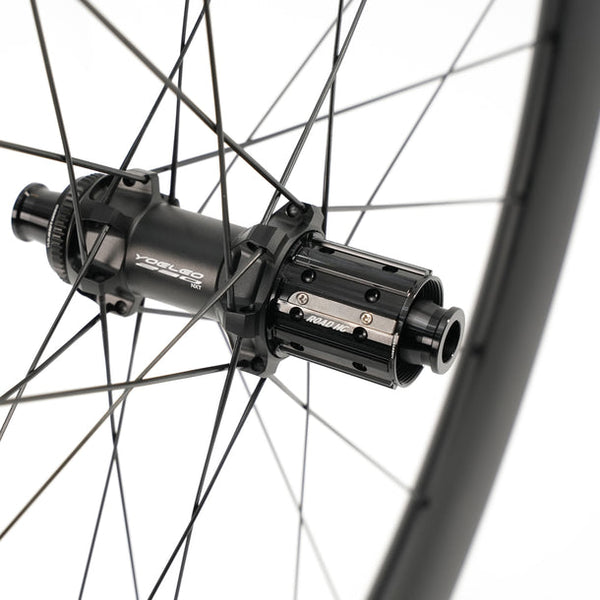

Nav |
36T |
|
Indbygningsbredde |
142mm thru-axle |
|
Freehub Optioner |
Standard Shimano HG 11/12-speed, Campagnolo N3W eller Sram XDR |
|
Compatible Cassette |
Shimano HG / SRAM / Campagnolo |
|
Kompatible dæk typer |
Clincher og Tubeless |
|
Maximum dæktryk |
120psi for Clincher, 90psi for Tubeless |
|
Kompatible dækbredde |
Kompatibel med 35c dæk og derover Anbefalet dækbredde 35c - 53c |
SAFETY EQUALS QUALITY
We have strict quality control process to ensure the excellent frameset quality.
1.Pedaling Fatigue Test : Load 1100N , 100000 Cycles
2.Vertical Fatigue Test: Load 1200N , 50000 Cycles
3.Horizontal Fatigue Test: Load 600N , 100000 Cycles
4.Vibration Fatigue Test: load ST:20KG,BB:40kg,HT:10kg , 30000 Cycles
5.Impact Test (Falling Mass): Falling height 212mm, farmar weight: 22.5 KG.
6.Rigid Test (Falling Frame): Load ST:30KG, BB:50kg, HT:10kg, 2 Cycles
WORRY FREE RIDE AT ANY CIRCUMSTANCES
We tested our H9 with 100,000 Cycle fatigue test, and the result must come with no damage, to ensure the longevity of the product.
72cm Drop impact test with both drop loaded by weight, replicate heavy sprinting, no damage.
We have very strict quality control for all YOELEO products, because safety is always our number one priority.
